Industrial electrical protection training system

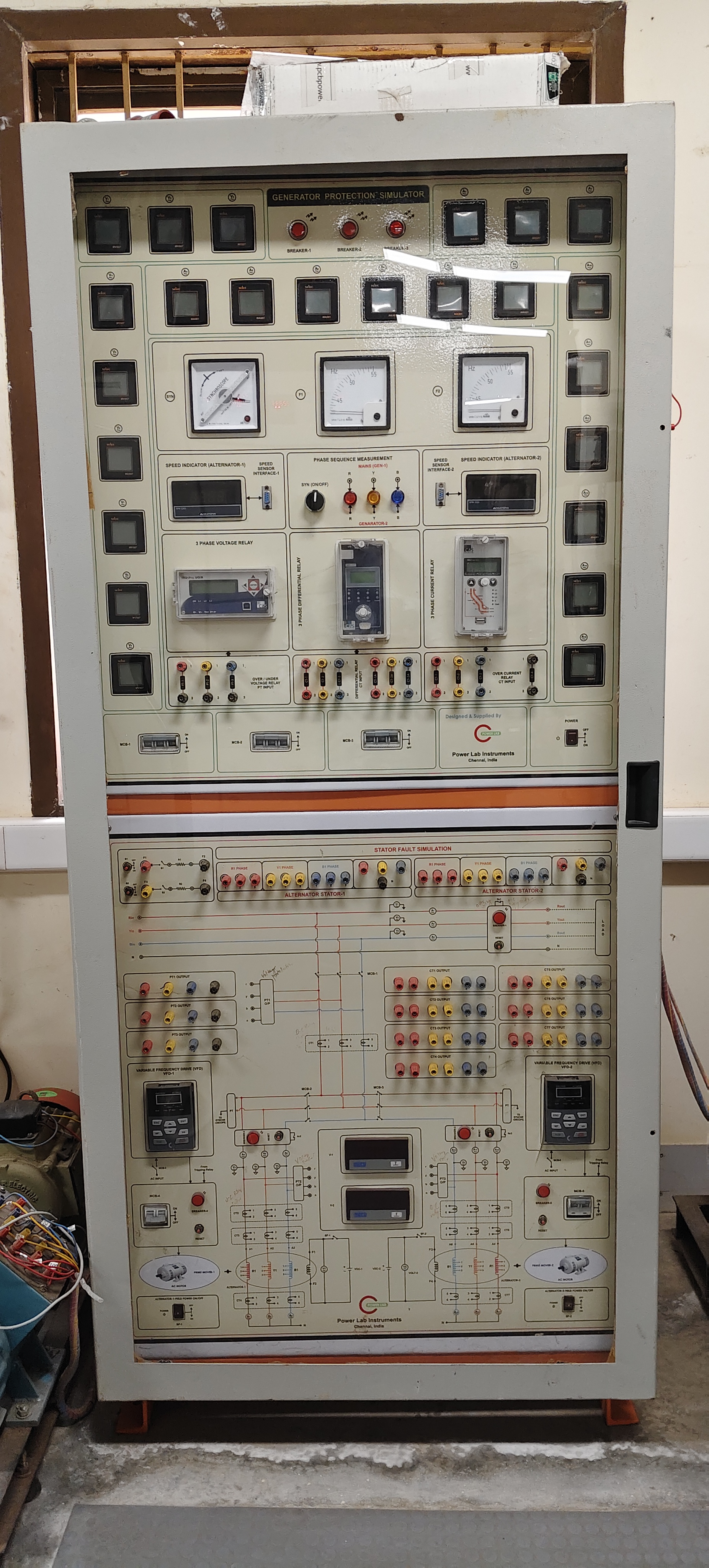

This is a generator protection simulator used in electrical engineering laboratories to study,test and demonstrate generator protection schemes.It integrates meters,protection relays,CT/PT simulation terminals,speed and frequency control and fault-injection panels in a single rack.The setup allows simulation of conditions such as over/under voltage,overcurrent,phase sequence errors,frequency variations,stator faults and observes relay operation and breaker tripping in a safe,controlled environment.
