Power quality monitoring system

Accurate Metering

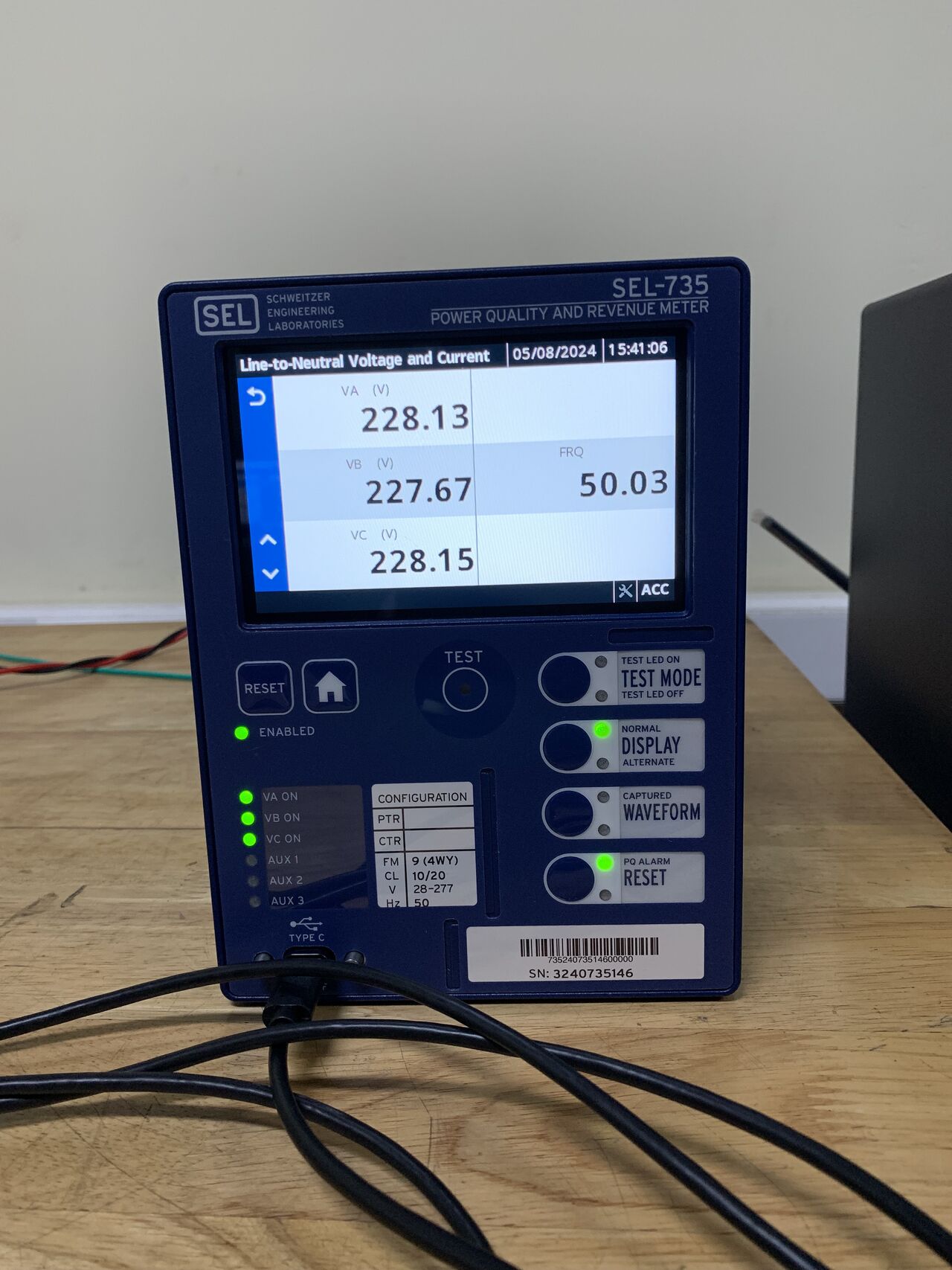

The SEL-735 exceeds the requirements of ANSI and IEC accuracy standards over a wide current
range. Capable of reliable and precise metering even in the presence of harmonics, the SEL-735
exceeds the 0.1 accuracy class requirements of ANSI C12.20 and 0.1 S accuracy class for IEC
62053-22. Quality-focused manufacturing ensures that the meter will meet these accuracy
requirements throughout its service life.
Load Profile Data Collection
You can collect billing data with a simple-to-use load profile recorder that captures years of data.
Advanced Integration
The SEL-735 integrates seamlessly into Itron MV-90 billing software, IEC 61850, DNP3, IEEE
C37.118, Modbus, or SEL communications architectures. Multiple communications ports and
protocols enable the SEL-735 to simultaneously communicate with up to ten devices.
Instrument Transformer Compensation
Transformer and Line-Loss Compensation,Time-of-Use (TOU) Metering,Predictive Demand.
