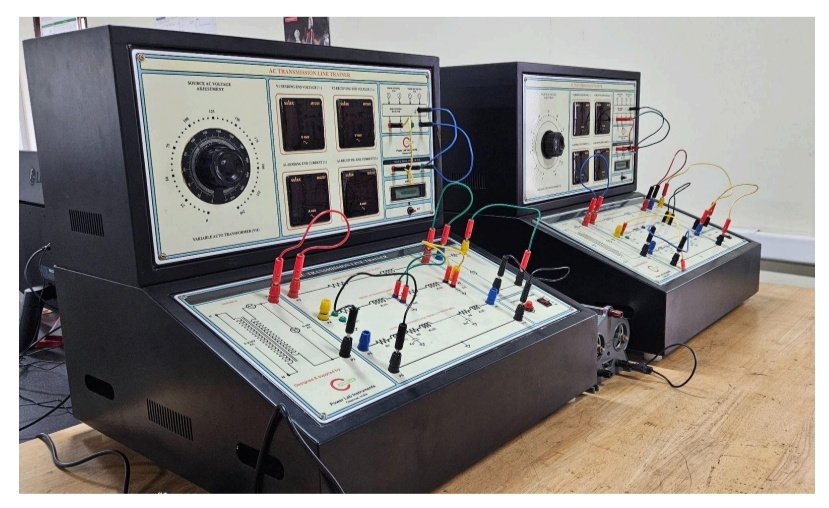

AC transmission line analyzer

This trainer is designed to study the transmission line parameters (A,B,C,D) measurement
procedure of a transmission line model . ● Measurement of TX line Parameters (A,B,C&D) of Short Tx Line Model
● Measurement of TX line Parameters (A,B,C&D) of Medium Tx Line Model (T & PI
Network)
● Measurement of TX line Parameters (A,B,C&D) of Long Tx Line Model
● Study of Ferranti Efect of TX line Model
