Pressure Measurement Bench

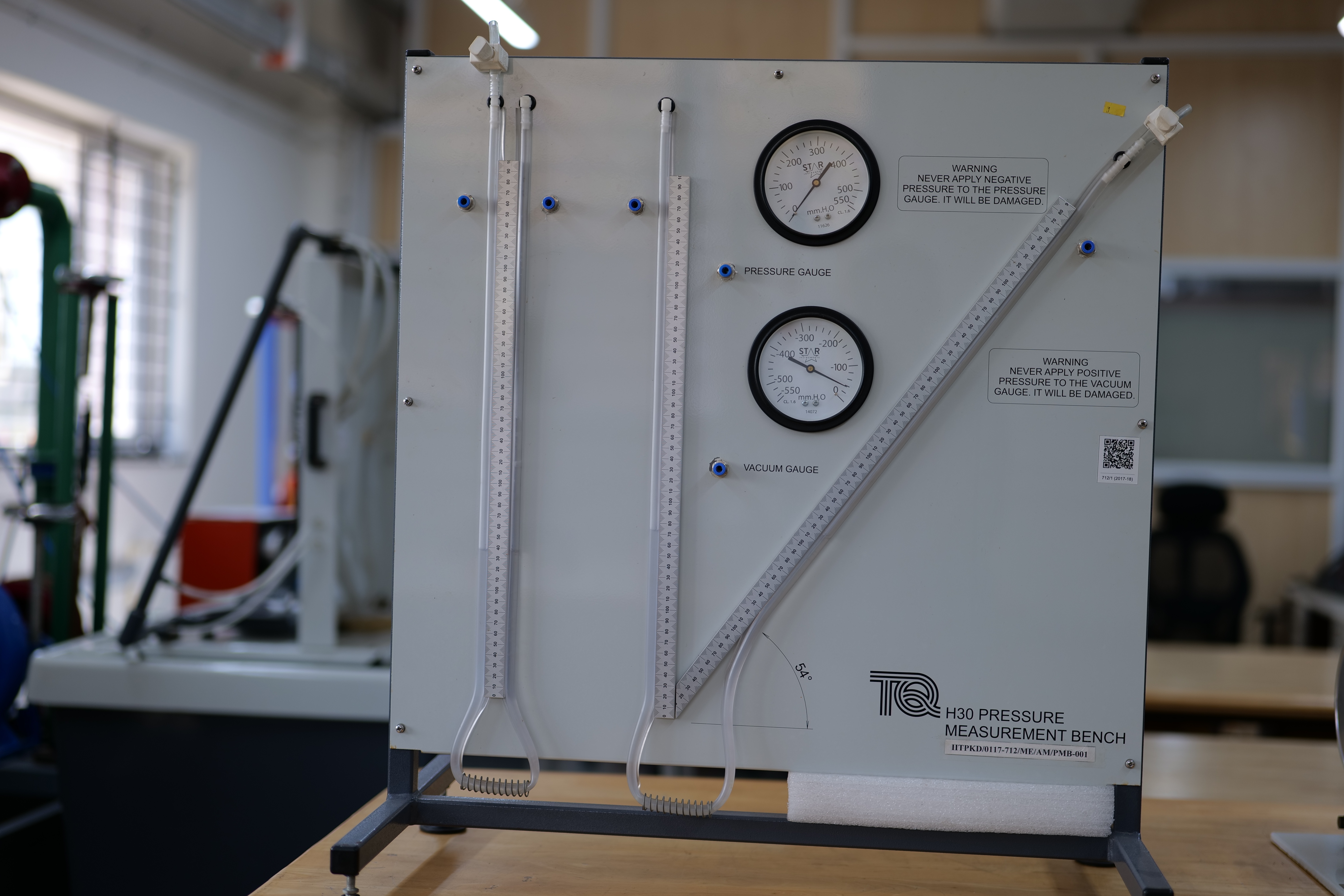

The Edutech H30/TQ203457-001 Pressure Measurement Bench is a comprehensive fluid mechanics teaching system designed for demonstrating various pressure measurement techniques and hydrostatic principles. This apparatus features multiple pressure sensing devices including manometers, Bourdon gauges, pressure transducers, and digital pressure indicators for comparative analysis. The system includes a controlled pressure source, manifold arrangement, and calibrated measurement sections for investigating static and dynamic pressure characteristics. It enables practical study of pressure head relationships, gauge and absolute pressure concepts, and pressure measurement accuracy considerations. The bench facilitates hands-on learning of fundamental fluid mechanics principles including Pascal's law, hydrostatic pressure distribution, and manometry techniques. This versatile educational equipment provides essential practical experience in pressure instrumentation, preparing students for advanced fluid mechanics applications while demonstrating the correlation between different measurement methodologies.
